Home made pistol box plans

Post by **Bullseye** » Sat Jan 28, 2006 4:15 pm

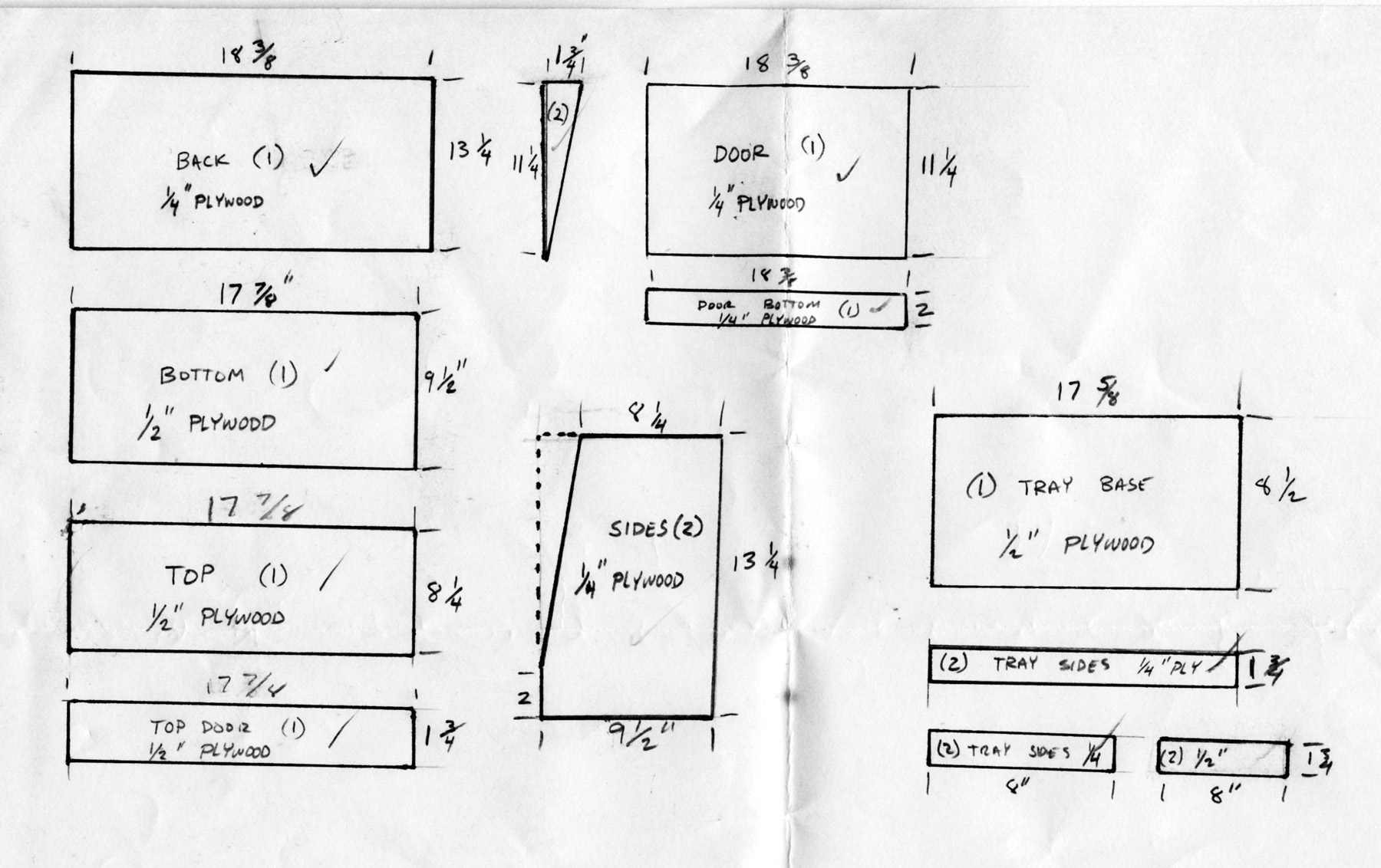

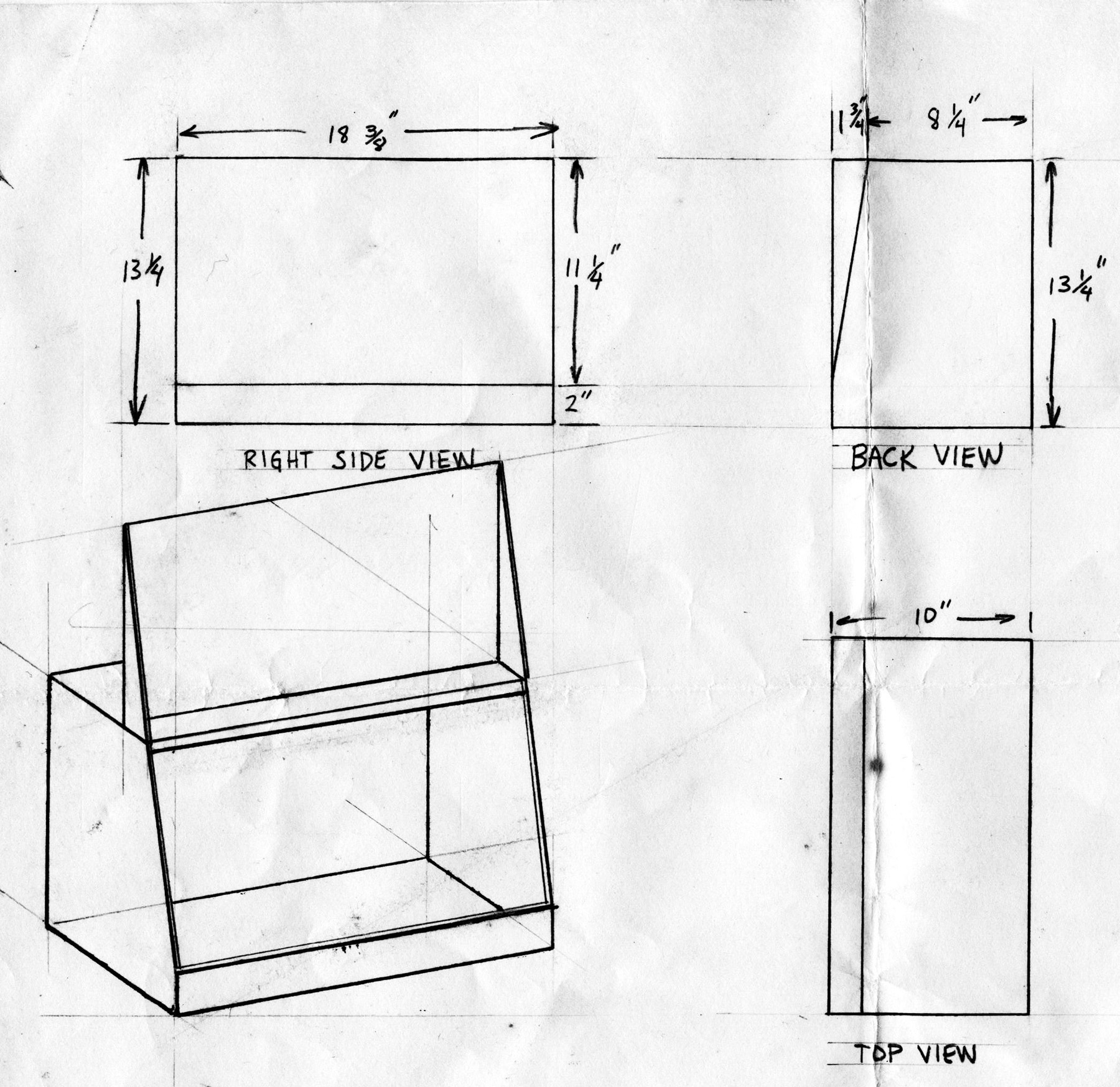

Here's some plans I made many years ago. (Caution Slow Loading)

Save these images to your computer then print them out.

Enjoy!

R,
Bullseye

chefmossy · Post by **chefmossy** » Tue Oct 14, 2008 6:39 pm

New here has anyone built this and how do you hold guns on tray.

Thanks

Post by **Bullseye** » Thu Oct 16, 2008 5:12 am

Yes, many folks have built these boxes. I have intentionally left the internal configuration vague, so the builder can choose how to best meet their pistol carrying needs. A set of hardwood pegs, set-up on a screw clamp configuration, works well for holding pistols in place. A builder can either use a tray configuration or a partitioned one to best store their pistols. Today's preference for scope mounted pistols requires a taller clearance, and the bottom partition style pistol box has more vertical room for these scoped style pistols.

Hope this helps.

R,
Bullseye
