S&W 617 Front Sight

recumbent · Post by **recumbent** » Sat Mar 15, 2008 10:01 pm

Last year sometime i saw a link to a web page for an aftermarket 617 front sight with a gold bead.

But like a dummy I didn't bookmark it.

Anyone have a link to it?

I just got a 617 and would like to try the other front sight. My eyes aren't what they used to be.

Post by **Bullseye** » Sun Mar 16, 2008 9:58 am

How tall is the front sight on your M-617?

R,
Bullseye

recumbent · Post by **recumbent** » Sun Mar 16, 2008 10:36 am

.170 I found the SDM but the shortest they make is .250

I can get a Millett target rear blade but not sure what height Millet to get that would work with the .250 front sight.

The revolver is 22LR six inch barrel.

Bob

Post by **Bullseye** » Sun Mar 16, 2008 11:02 am

Hi-Viz makes a fiber optic front sight especially fitted for a 617.

http://www.hivizsights.com/Handgun-Smit ... P51C9.aspx

How tall is your rear sight blade?

R,
Bullseye

recumbent · Post by **recumbent** » Sun Mar 16, 2008 11:08 am

I want a front sight similar to what came on the gun but with a gold bead on the rear.

I'll run downstairs to measure the rear sight blade.

Where should I measure?

recumbent · Post by **recumbent** » Sun Mar 16, 2008 11:14 am

Rear sight blade is .068

Post by **Bullseye** » Sun Mar 16, 2008 11:23 am

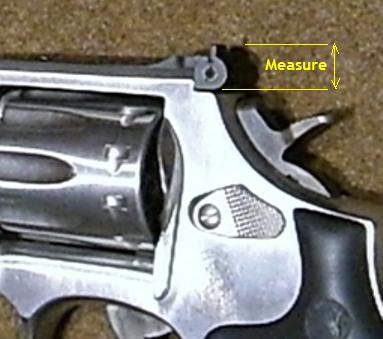

Measure here.

There is another option, just buy the gold bead from SDM and install it yourself. They sell them for $20 each. http://www.sdmfabricating.com/Gold%20Bead.htm

R,
Bullseye

recumbent · Post by **recumbent** » Sun Mar 16, 2008 11:33 am

OK, without taking the sight off the gun I measured .369

The millett sights are available in .310, .360 and .410

Post by **Bullseye** » Sun Mar 16, 2008 11:43 am

Looking at the measurements, your rear is roughly equivalent to the .360 Millett replacement rear. According to my calculations, if you bought the .410 Millett rear, you'd still be .030" short. Looks like your best bet is to install a gold bead on the existing front sight.

R,
Bullseye

recumbent · Post by **recumbent** » Sun Mar 16, 2008 11:45 am

Thanks,
I have a drill press, wonder how hard it is to install the pin on the front sight?

Post by **Bullseye** » Sun Mar 16, 2008 11:55 am

It's just a roll pin. You can drift it out and remove the old sight. Measure .0625" down from the top and make a mark. This would be the centerpoint of the .081" (#46 twist drill) hole for bead shank. That measurement will put the top of the .125" bead dead even with the top edge of the front sight.

R,
Bullseye

recumbent · Post by **recumbent** » Sun Mar 16, 2008 12:03 pm

Thank you very much!!

That is what I'll do.

Bob
