Hi-Standard Model B

[markIIIronp]

I have an old model B hi-Standard pistol. Where can I get a good schematic for this pistol? It's in fair shape, but at present it will not cycle without jamming. I have removed the firing pin and the large diameter that is struck by the hammer was swelled a little. I chucked it up in a drill and stoned the big end. This made it slide easily in the bore and stop hanging up. There was no return spring for the firing pin. Later models show a return spring, but this model may not have one. The firing pin was not retracting thus causing the gun to jam. I could push the pin reward with my finger and I could hand feed a round. When I fired the gun the pin would stay out and cause another jam. I know that I can get some parts from Brownell's, but without a schematic it is a guessing game on what to order. I think that a lot of the parts are inter-changable with the Military model, but Brownell's does not have a schematic for either model. Any help would be greatly appreciated.

[Bullseye]

Try this one http://www.urban-armory.com/diagrams/histdsup.htm

If that one doesn't work for you then use the one on this link http://www.guntalk-online.com/images/hs_bkdw.jpg

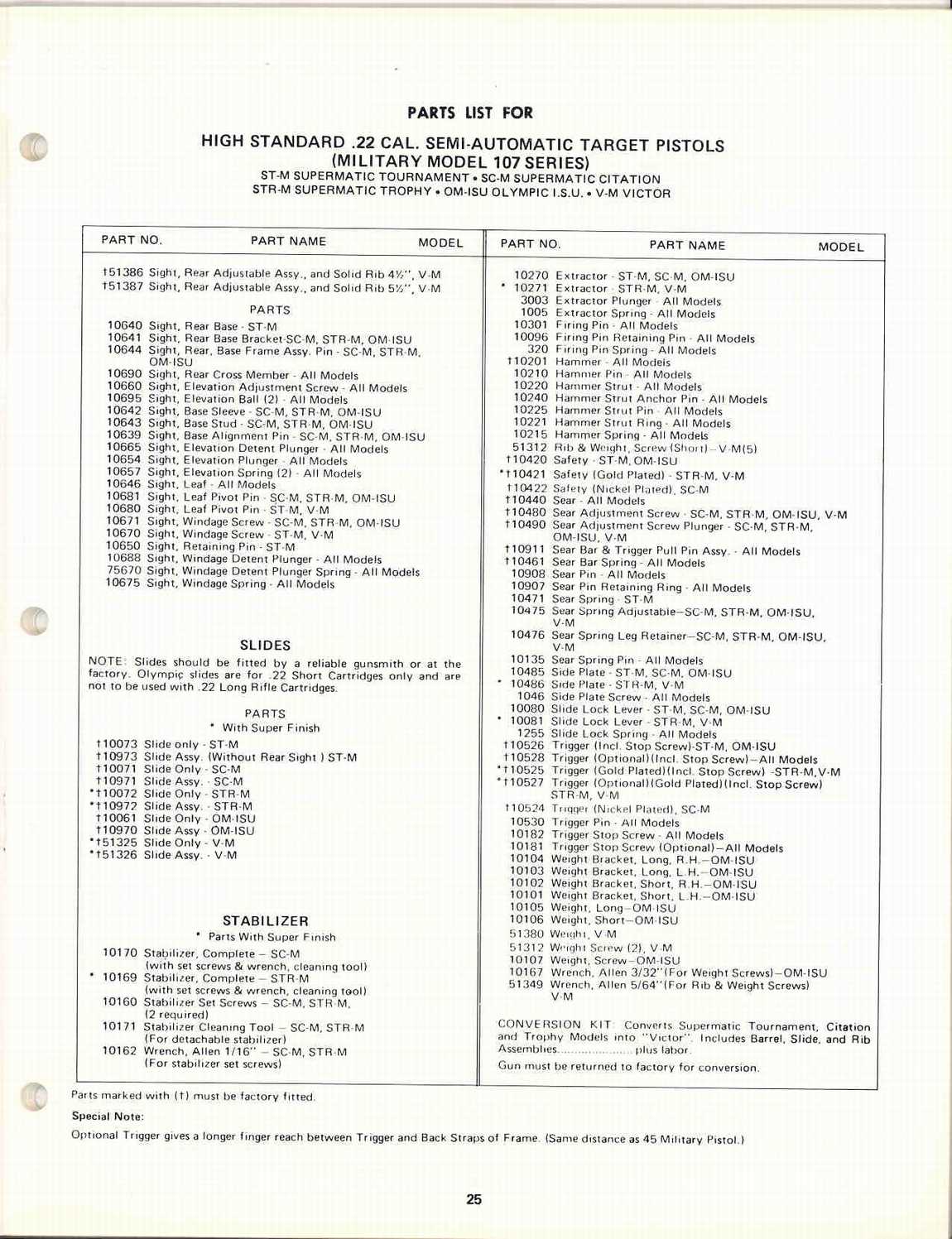

http://www.guntalk-online.com/images/hs_pl.jpg

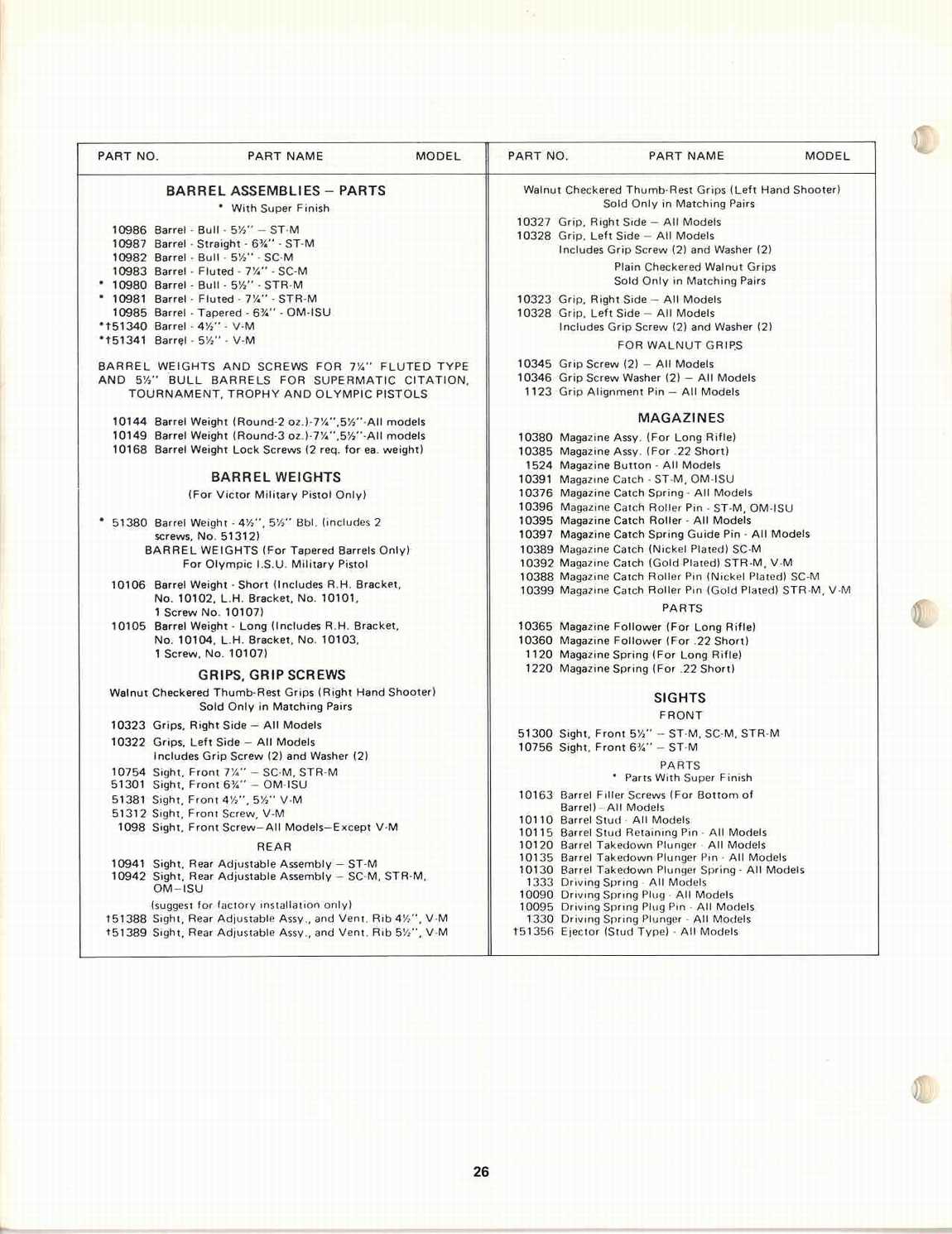

http://www.guntalk-online.com/images/hs_pl2.jpg

High Standards have always been feeding sensitive, most of the problems I've encountered have been magazine related. It doesn't take much to knock the feed lips out of alignment.

R,
Bullseye
